Configuration

Overview

There is an option to enable Grafana Alloy on all switches to forward metrics and logs to the configured targets using Prometheus Remote-Write API and Loki API. Metrics includes port speeds, counters, errors, operational status, transceivers, fans, power supplies, temperature sensors, BGP neighbors, LLDP neighbors, and more. Logs include Hedgehog agent logs, switch syslog, pod logs for all services running in the control node k8s cluster. Modify the URL as needed, instead of /api/v1/push it could be /api/v1/write; check the documentation for the data provider.

Switches push telemetry data through a proxy running in a pod on the control node. Switches do not have direct access to the Internet. Configure the control node to be able to reach and resolve the location of the Prometheus and Loki servers.

Telemetry can be enabled after installation of the fabric. There are two YAML objects that control the telemetry configuration. The first YAML object configures the credentials and URL for the collectors. The second configures which metrics are sent via Grafana Alloy.

Grafana Cloud Configuration

Tokens

Grafana Cloud manages read and write permissions with policies. In order to send metrics to the prometheus or loki a policy for your realm needs to be created. When creating the policy ensure that it has at least logs:write and metrics:write permission selected. After the policy is created, create a token under that policy. Ensure that the token is appropriately named and time limited. Depending on your environment separate tokens for log writing and metric writing might be advisable. For additional details see the documentation

Billing

Users are advised to use the regular expressions to limit the amount of data sent to grafana cloud as the costs compound quickly.

Add Credentials

Take the tokens created on grafana cloud and populate them in this YAML file. The username is different between prometheus and loki. Apply the setting below for telemetry to be pushed to the specified Prometheus and Loki instances:

spec:
  config:
    observability:
      labels:
        env: hh-fabric # (1)!
      targets:
        loki:
          grafana_cloud: # (2)!
            basicAuth:
              password: "insert_password_or_token_here"
              username: "1234567"
            labels:
              some: label # (3)!
            url: https://[your-loki-server].grafana.net/loki/api/v1/push
        prometheus:
          grafana_cloud: # (4)!
            basicAuth:
              password: "insert_password_or_token_here"
              username: "1234567"
            labels:
              some: label
            url: https://[your-prometheus-server].grafana.net/api/prom/push

1. Common label for all targets, "env" is a well-known label used in dashboards
2. Can be any name of your choosing
3. Extra labels applied to a specific target
4. Can be any name of your choosing

To apply these changes to the fabric use the following command:

kubectl patch -n fab --type merge fabricator/default --patch-file credentials.yaml

Gateway Observability

spec:
  config:
    gateway:
      observability:
        dataplane:
          metrics: true
          metricsInterval: 60
        frr:
          metrics: true
          metricsInterval: 60
        unix: # (1)!
          metrics: true
          metricsCollectors: # (2)!
          - cpu
          - loadavg
          - meminfo
          - filesystem
          metricsInterval: 60

1. Alloy is configured to use the prometheus.exporter.unix component
2. This lists the enabled collectors

To apply these changes to the fabric use the following command:

kubectl patch -n fab --type merge fabricator/default --patch-file gateway.yaml

Fabric Observability

This example shows how to configure the collection of data from the fabric switches.

spec:
  config:
    fabric:
      observability:
        agent: # (1)!
          logs: true
          metrics: true
          metricsInterval: 60
          metricsRelabel: # (2)!
          - action: keep
            regex: .*(_in_bits|_status|_generation|_temperature|_transceiver).* # (3)!
            sourceLabels:
            - __name__
        unix: # (4)!
          metrics: true
          metricsCollectors: # (5)!
          - cpu
          - loadavg
          - meminfo
          - filesystem
          metricsInterval: 60
          metricsRelabel: # (6)!
          - action: keep
            regex: .*(_load).* # (7)!
            sourceLabels:
            - __name__
          syslog: true

1. The Hedgehog agent generates information from the ASIC ports and switch configuration
2. This option mirrors the prometheus.relabel component
3. This is a regular expression over all the metric names that come from prometheus
4. Alloy is configured to use the prometheus.exporter.unix component
5. This lists the enabled collectors
6. This option mirrors the prometheus.relabel component
7. Regular expression over the metric names that come the metricsCollectors

To apply these changes to the fabric use the following command:

kubectl patch -n fab --type merge fabricator/default --patch-file config.yaml

Users are encouraged to read the Grafana Alloy Docs on relabeling to ensure the desired metrics are selected. By default all metrics are sent to the collectors.

Alerting

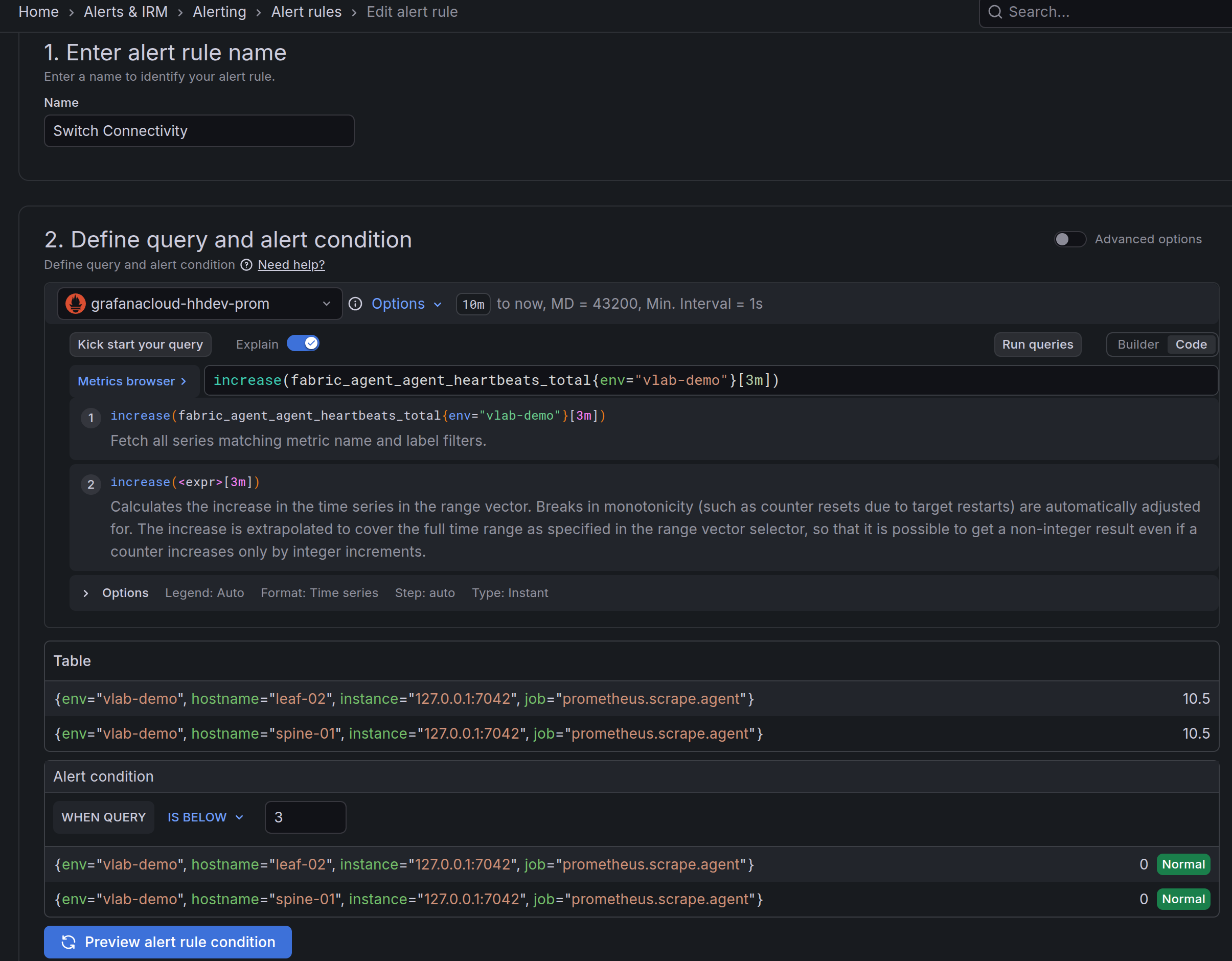

The alert rule queries the increase of the fabric_agent_agent_heartbeats_total metric. In normal operation the switch agent sends two increments every minute. The prometheus increase function will extrapolate the value for the total time range which leads to a higher reported number than is actually observed, this is not a concern. Select a value for the Alert condition according to your operational needs. The example has a value of 3, which allows for some delays and drops before firing the alarm.

For convenience here is the JSON used to configure this alarm. Values that should be changed to match your environment contain the string "Hedgehog".

Grafana has a learning journey to assist users in creating and configuring alerts.
